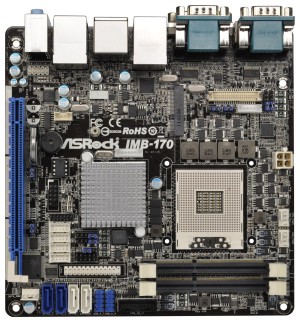

| Form Factor |
| Dimensions |
- Mini-ITX (6.7-in x 6.7-in) |
| Processor System |
| CPU |
- Supports 3rd and 2nd Generation Intel® Core i7/i5/i3/Celeron mobile processor (IVY Bridge and Sandy Bridge)
in Socket G2 package (rPGA988B) |
| Core Number |
- (By CPU, Max 4) |
| Max Speed |
- (By CPU) |
| L3 Cache |
- (By CPU) |
| Chipset |
- QM77 |
| BIOS |
- UEFI |
| Expansion Slot |
| PCI |
- 0 |
| Mini-PCIe |
- 1 |
| PCIe x16 (Gen2) |
- 1 |
| CF Card Socket |
- 0 |
| Memory |
| Technology |
- Dual Channel DDR3 1066/1333/1600 MHz SDRAM |
| Max. |
- 16GB |
| Socket |
- SO-DIMM x 2 |
| Graphics |
| Controller |
- Intel® Grapic HD |
| VRAM |
- Shared Memory |
| DSub |
- Yes, through DVI-I, supports max resolution 2048x1536 |
| LVDS |
- Dual Channel 24bits, max resolution 1920x1200 |
| HDMI |
- Supports HDMI 1.4a, max resolution 1920x1200 |
| DVI |
- Yes, supports max resolution 1920x1200 |
| DisplayPort |
- Yes, supports max resolution 2560x1600 |
| MultiDisplay |
- Yes |
| Ethernet |
| Ethernet |
- 10/100/1000 Mbps |
| Controller |
- GbE LAN1: Intel® 82579V/LM, LAN2: Intel® 82583V |
| Connector |
- RJ-45 x 2 |
| SATA |
| Max Data Transfer Rate |
- SATA2 3.0Gb/S / SATA3 6.0Gb/S |
| Rear I/O |
| VGA |
- 0 |
| DVI |
- 1 (DVI-I) |
| HDMI |
- 1 |
| DisplayPort |
- 1 |
| Ethernet |
- 2 |
| USB |
- 6 (USB 2.0 compliant x 4, USB 3.0 compliant x 2) |
| Audio |
- 3 (Mic-in, Line-out, Line-in) |
| Serial |
- 2 (RS-232/422/485) |
| PS2 |
- 1 (Combo) |
| Internal Connector |
| USB |
- 6 (USB 2.0 compliant x 4, USB 3.0 compliant x 2) |
| LVDS / inverter |
- 1/1 |
| VGA |
- 0 |
| Serial |
- 4 (RS-232) |
| IDE |
- 0 |
| SATA |
- 4( SATA2 x 2, SATA3 x 2) |
| mPCIe |
- 1 |
| Parallel |
- 1 |
| mSATA |
- 0 |
| IrDA |
- 0 |
| GPIO 8-bit |
- 4 x GPI + 4 x GPO |
| SATA PWR Output Con |
- 1 |
| Speaker Header |
- 1 |
| Watchdog Timer |
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments, 0,1,2…255sec/min |
| Power Requirements |
| Input PWR |
- 12V DC-In (4-pin ATX PWR Con) |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Environment |
| Temperature |
- 0ºC – 60ºC |
