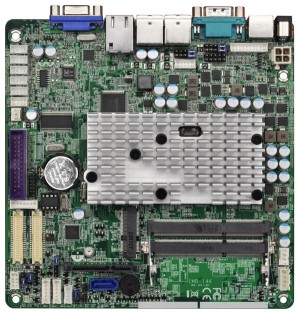

| Form Factor |
| Dimensions |
- Mini-ITX (6.7-in x 6.7-in) |
| Processor System |
| CPU |
- Intel® Dual-Core Atom™ CedarView Processor D2550/N2600/N2800
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology |
| Core Number |
- 2 |
| Max Speed |
- 1.86 GHz |
| L3 Cache |
- N/A |
| Chipset |
- NM10 |
| BIOS |
- UEFI |
| Expansion Slot |
| PCI |
- 0 |
| Mini-PCIe |
- 1 |
| PCIe x16 (Gen2) |
- 0 |
| CF Card Socket |
- 0 |
| Memory |
| Technology |
- Single Channel DDR3 800/1066 MHz SDRAM |
| Max. |
- 4GB |
| Socket |
- SO-DIMM x 2 |
| Graphics |
| Controller |
- Intel® PowerVR SGX545, Support Directx9 compliant Pixel Shader v3.0 and OGL 3.0 |
| VRAM |
- Shared Memory |
| DSub |
- Yes, supports max resolution 1920x1200 |
| LVDS |
- Dual Channel 24bits, max resolution 1920x1200 |
| HDMI |
- Supports HDMI 1.3a, max resolution 1920x1200 |
| DVI |
- Yes, supports max resolution 1920x1200 |
| DisplayPort |
- 0 |
| MultiDisplay |
- Yes |
| Ethernet |
| Ethernet |
- 10/100/1000 Mbps |
| Controller |
- GbE LAN: 1 x Realtek RTL8111E-VL |
| Connector |
- RJ-45 x 1 |
| SATA |
| Max Data Transfer Rate |
- SATA2 3.0Gb/s |
| Rear I/O |
| VGA |
- D-Sub x 1 |
| DVI |
- 0 |
| HDMI |
- 0 |
| DisplayPort |
- 0 |
| Ethernet |
- 1 |
| USB |
- 4 (USB 2.0 compliant x 2 ; USB 3.0 compliant x 2) |
| Audio |
- 0 |
| Serial |
- 1 (RS-232) |
| PS2 |
- 2 |
| Internal Connector |
| USB |
- 3 (USB 2.0 compliant) |
| LVDS / inverter |
- 1/1 |
| VGA |
- 0 |
| Serial |
- 1 (RS-232) |
| IDE |
- 1 |
| SATA |
- 1 (SATA2) 7-pin + 1 (SATA2) 22pin |
| mPCIe |
- 1 |
| Parallel |
- 1 |
| mSATA |
- 0 |
| IrDA |
- 0 |
| GPIO 8-bit |
- 4 x GPI + 4 x GPO |
| SATA PWR Output Con |
- 1 |
| Speaker Header |
- 1 |
| Watchdog Timer |
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments, 0,1,2…255sec/min |
| Power Requirements |
| Input PWR |
- 12V DC-In (4-pin ATX PWR Con) & DC-IN Jack |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Environment |
| Temperature |
- 0ºC – 60ºC |
